SCHNEIDER - 7314145000

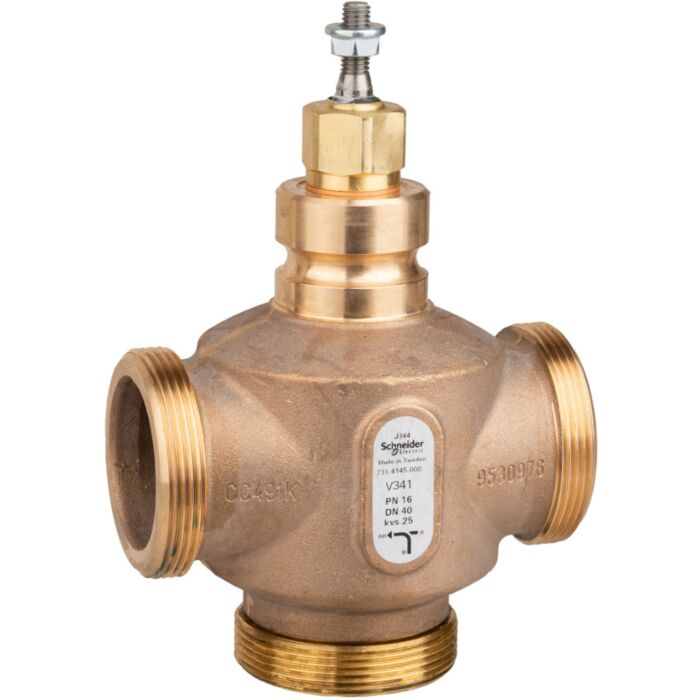

Venta v341 globe valve, 3-way, pn16, g 2-1/4 external thread, dn40, kvs 25, bronze body, stainless steel trim, max. glycol 50%, stem up closed (a-ab)

Ref: 342861 - EAN: 3606489658878
VALVULA 3 VIAS ROSCA EXTERNA DN 40 25kV

Descripción

The V341 is an externally threaded 3-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 100:1 and is of a self cleaning design for reliable operation. Valve size: DN40, G External, Flow capacity, Kvs: 25 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 600 Kpa. EPDM seals provide a working temperature range of -20 °C to + 150 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 2014/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G2-1.4 External (Male) Connection.

Características Técnicas

  • Grado de protección (IP) 0.02
  • Grado de protección (IP)
  • Carcasa de material Bronce
  • Clase de compresión de brida
  • Calidad del material
  • Calidad del material 20
  • Calidad del material Rosca externa
  • Protección superficial Sin tratar
  • Protección superficial 40
  • valor Kvs 25.00
  • valor Kvs
  • Diámetro nominal
